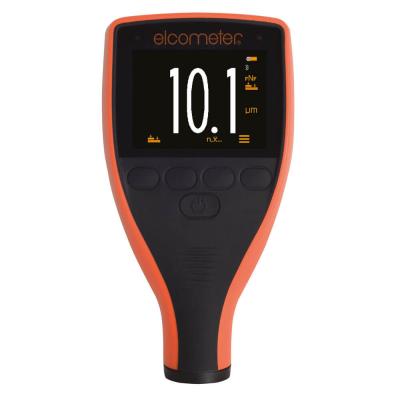

Elcometer 415 Industrial Paint & Powder Thickness Gauge

The new Elcometer 415 automatically switches between ferrous and non-ferrous metals. Designed to measure cured paint and powder coatings up to 1000, the thickness gauge is ideal for the industrial paint & powder market. With a reading rate of 60 readings per minute, the new paint and powder thickness gauge allows to inspect more industrial materials in less time. Compatible with ElcoMaster software and ElcoMaster Mobile App, individual paint and powder thickness readings can be transferred via USB or Bluetooth to PC or a mobile device for analysis and instant report generation.

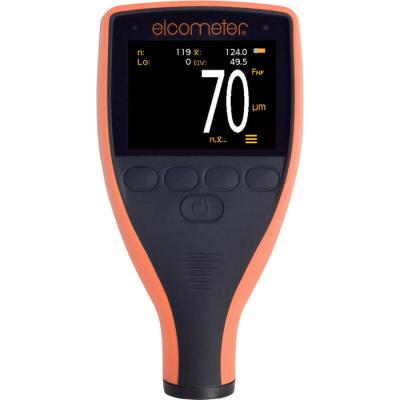

Elcometer 311 Automotive Paint Meter

The new Elcometer 311 Automotive Paint Meter is the fastest automotive paint gauge on the market today, used to instantly measure paint thickness and provide an indication of the overall condition of paint work.

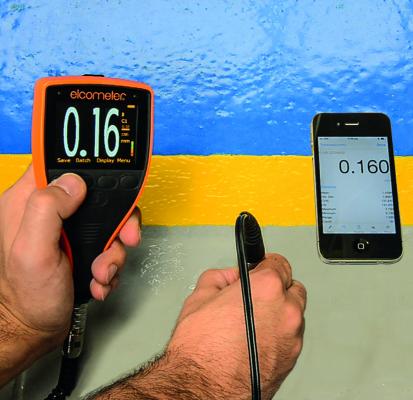

Elcometer 500 Concrete Coating Thickness Gauge

The Elcometer 500 Coating Thickness Gauge accurately measures the thickness of coatings on concrete and other similar substrates* - non destructively. Fast and accurate, the Elcometer 500 Coating Thickness Gauge takes repeatable and reproducible dry film thickness measurements of coatings on concrete up to 10mm‡ thick – without damaging the coating. Taking over 60 readings per minute in standard mode and 140+ readings per minute in scan mode; the Elcometer 500 Coating Thickness Gauge allows users to inspect more coatings in less time. With a choice of intelligent, ergonomic probes, designed for continuous use and field replaceable probe tips you can inspect all day, everyday.

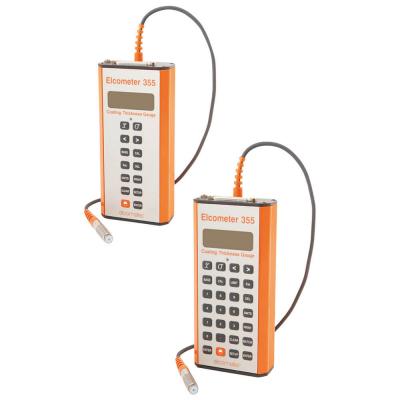

Elcometer 355 Coating Thickness Gauge

The Elcometer 355 Coating Thickness Gauge's watchwords are accuracy, simplicity, versatility and durability making this a true state of the art hand-held measuring system packed with time-saving and cost-cutting features. Available as a standard and top model, the unit’s large memory stores up to 10,000 readings in batches and data can be output to PC, datalogger or printer as required.

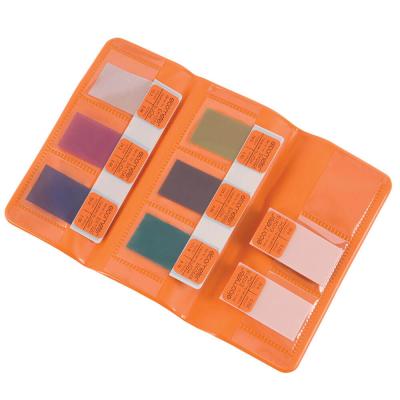

Calibration Foils Sets

The Elcometer 990 coating thickness gauge calibration foils are ideal for use in the laboratory, on the production line or on site. Calibration foils or shims are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. Shims provide the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.

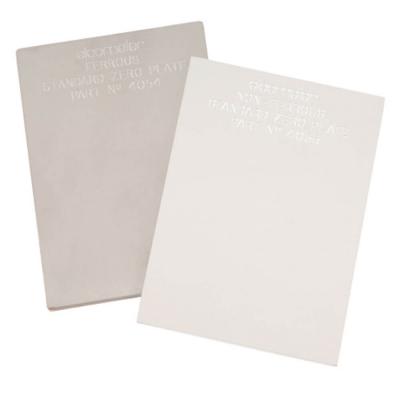

Zero Test Plates

Elcometer provides a range of Zero Test Plates to ensure correct calibration of the coating thickness gauge. When used in conjunction with a set of foils, Zero Test Plates are ideal to test a coating thickness gauge’s functionality and calibration, ideal for when it may be difficult or impractical to obtain an uncoated substrate.

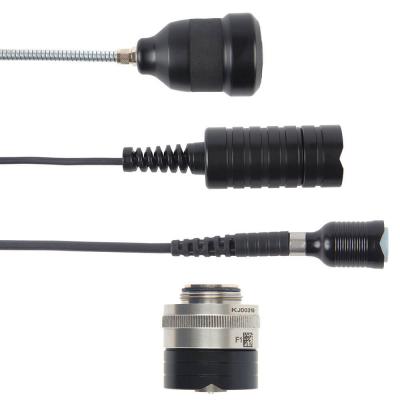

Elcometer 456 Coating Thickness Gauge Probe Range

All Elcometer 456 coating thickness gauge probes are fully interchangeable and are available in a number of designs and scale ranges to meet your specific application. Ferrous coating thickness gauge probes measure non magnetic coatings on ferro-magnetic substrates. Elcometer 456 coating thickness ferrous gauges accept any ferrous probe. Non-ferrous coating thickness gauge probes measure non conductive coatings on non-ferrous metal substrates and Elcometer 456 non-ferrous gauges accept any non-ferrous probe. Dual FNF probes measure both ferrous and non-ferrous applications with automatic substrate detection. Elcometer 456 FNF coating thickness gauges accept all ferrous, non-ferrous and dual FNF probes.
