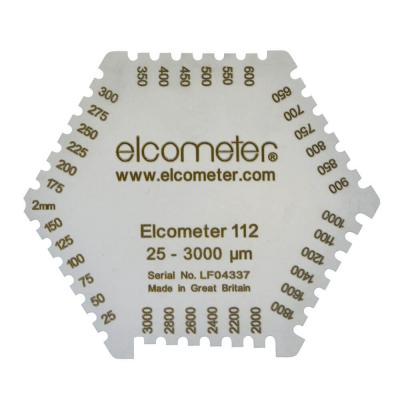

Elcometer 112AL, 112 & 3236 Hexagonal Wet Film Combs

The Elcometer Hexagonal Wet Film Combs are designed for wet film thickness measurements and come in a range of thickness scales.

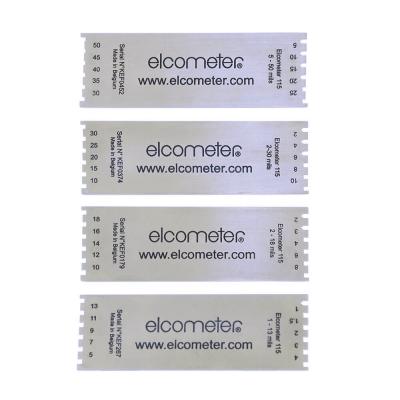

Elcometer 115 Wet Film Combs (Stainless Steel)

These reusable precision stainless steel wet film combs are made to be long lasting and are supplied with either Metric or Imperial film thickness measurements. Four separate wet film thickness ranges are available up to a maximum of 1250µm / 50mils and are manufactured to an accuracy of ±5% or ±3µm (0.012mil), whichever is the greater. Each wet film comb has 10 measurement steps (teeth). Variasi

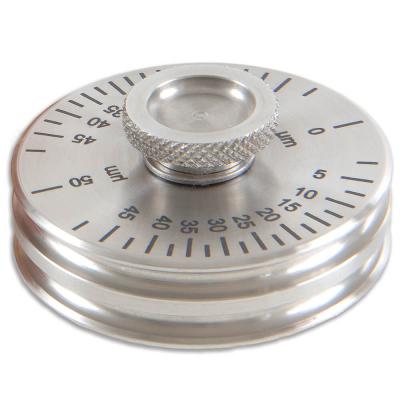

Elcometer 3230 Coil Coating Wet Film Wheels

This instrument is similar to the Elcometer 3230 Wet Film Wheel, but is designed for use in the coil coating process.

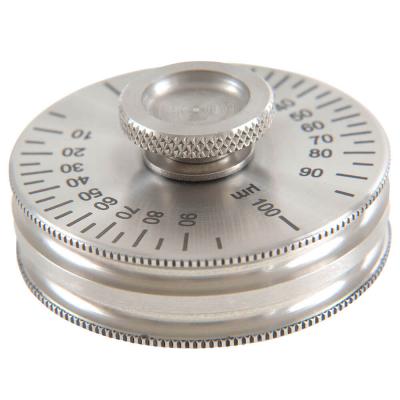

Elcometer 3230 Wet Film Wheels

The Elcometer 3230 Wet Film Wheel is a high precision, accurate and easy to use instrument which consists of a set of three wheels. The central wheel is of a smaller diameter and is eccentric relative to the two outer wheels.

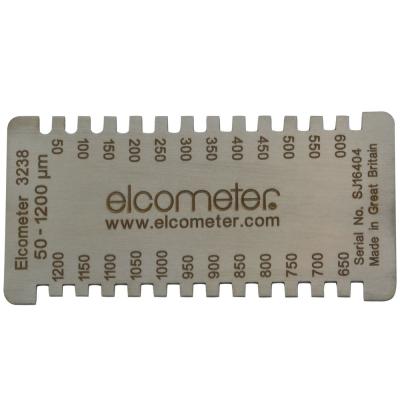

Elcometer 3238 Long Edge Wet Film Combs

These stainless steel combs are wire eroded to provide an accuracy ±5% of marked value or ±3μm (0.12mil), whichever is greater, and are supplied with either Metric or Imperial measurements. Each wet film comb has 24 measurement stages (teeth) providing a more accurate wet film thickness value.
