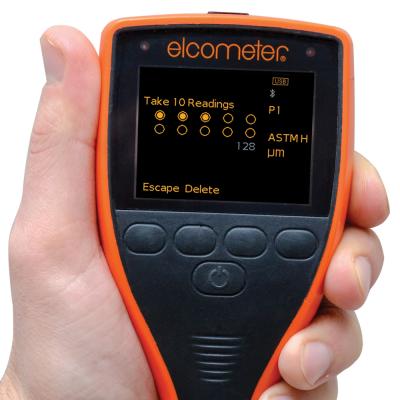

Elcometer 224 Digital Surface Profile Gauge

The Elcometer 224 provides the very latest in surface profile measuring technology for measuring profile on either flat or curved surfaces. -Fast and reliable peak-to-valley surface profile measurement -Accurately measure surface profile on flat or curved surfaces up to 500 (20mils) -Measures both average peak-to-valley and average maximum peak-to-valley height -Portable, rugged hand-held design is ideal for field use

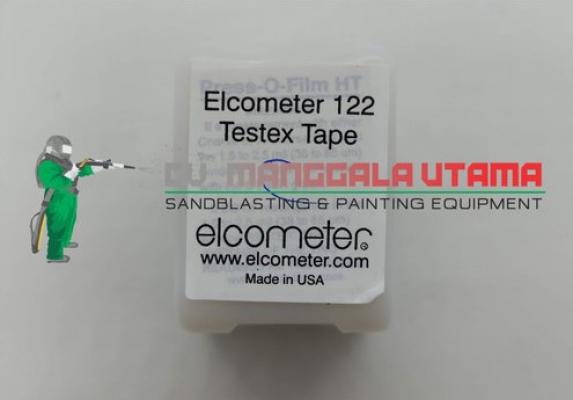

Elcometer 122 Testex® Replica Tape

he Elcometer 122 Testex® Replica Tape is designed to provide a permanent mould of the surface profile, which can then be measured using a thickness gauge. Elcometer 122 Testex® Tape consists of foam with a non-compressible backing. The foam side is rubbed into the surface providing a permanent mould of the peak-to-valley profile. The profile of the surface can then be measured using the Elcometer 124 Thickness Gauge. Elcometer 122 Testex® Replica Tape is available in four profile ranges. It is important that the tape grade chosen is reflective of the profile being measured. -For surface profiles between 12 & 25µm (0.5 & 1.0mils): Coarse Minus Tape -For surface profiles between 20 & 38µm (0.8 & 1.5mils): Coarse Tape -For surface profiles between 38 & 64µm (1.5 & 2.5mils): Average of Coarse and X-Coarse Tape -For surface profiles between 64 & 115µm (2.5 & 4.5mils): X-Coarse Tape -For surface profiles greater than 115µm (4.5mils): X-Coarse Plus Tape

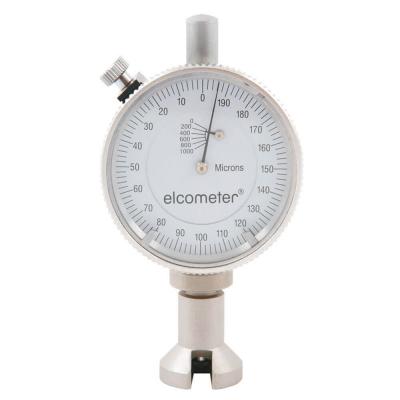

Elcometer 123 Surface Profile Gauge

The Elcometer 123 Surface Profile Gauge is an easy to use analogue gauge. The Elcometer 123 Profile Gauge measures the peak-to-valley height of a blast cleaned surface in a similar way to the Elcometer 224 Digital Surface Profile Gauge.

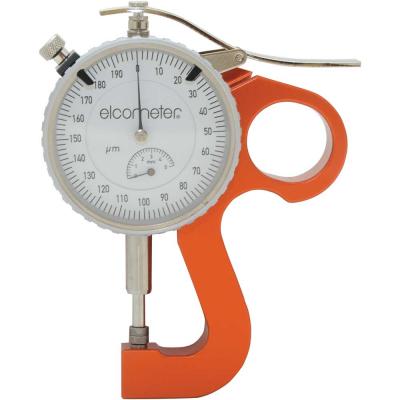

Elcometer 124 Thickness Gauge

The Elcometer 124 Thickness Gauge is used to measure the peak-to-valley height of a surface profile moulded in the Elcometer 122 Testex® Replica Tape. Available in both Metric and Imperial versions -Quick and easy to use -Anvil pressure as required in the Standards.

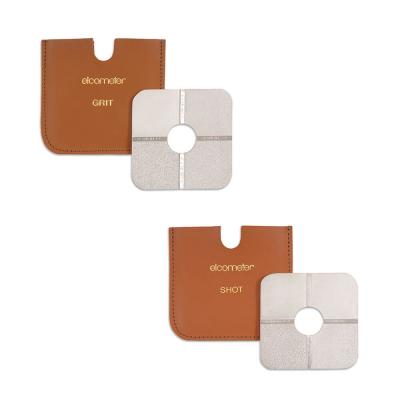

Elcometer 125

Elcometer 125 Surface Comparators These extremely durable surface comparators allow the estimation of surface profile of either grit or shot blasted surfaces. Using the Elcometer 125 surface comparators as a reference the blasted profile can be compared to the four reference profile grades in each comparator. Profiles are recorded in microns. 4 Profile Values per Comparator.

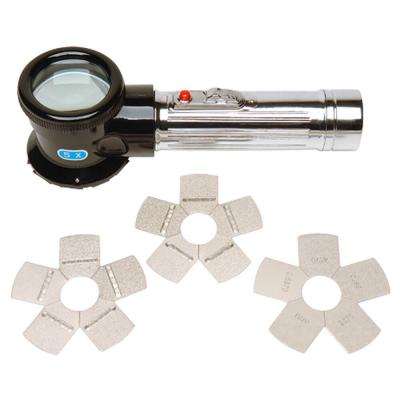

Elcometer 127 Keane-Tator Surface Comparators & Magnifier

The Elcometer 127 Surface Comparators are available in sand, shot or grit surface profiles. Each surface comparator is supplied with 5 profile grades ranging from 0.5 - 5.5mils. Designed for use with the Elcometer 127 illuminated magnifier, each surface comparator has a hole in the centre allowing for clear visual comparisons to be made. 5 Roughness Values per Comparator.

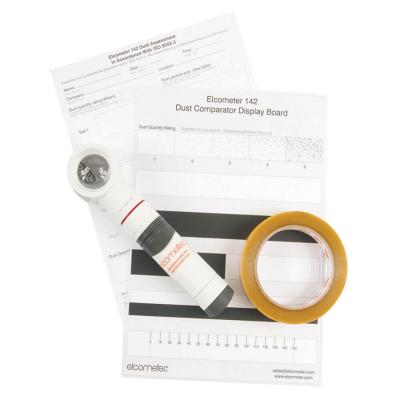

Elcometer 142 ISO 8502-3 Dust Tape Test Kit

he Elcometer 142 Dust Tape Test kit allows assessment of the quantity and size of dust particles on surfaces prepared for painting. Dust on blast cleaned surfaces can reduce coating adhesion, leading to premature coating failure and sub-standard coating finish. Used in conjunction with the Elcometer 145 Dust Tape Roller the kit can be used in accordance with the recommendations of BS EN ISO 8502-3 either as a pass/fail test or as a permanent record of the presence of dust.
